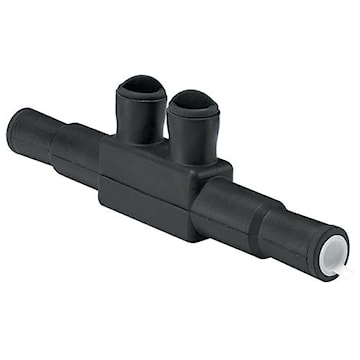

ILSCO USPA-350SS-DB WATERTIGHT UNDERGROUND IN-LINE

Manufacturer:ILSCO
Manufacturer #:USPA-350SS-DB

Description

Watertight, underground in-line splice. Encapsulated in EPDM rubber with a nominal thickness of 125 Mils and a dielectric strength of 240 Volts per Mil. Connector is produced from high strength 6061-T6 aluminum alloy. Simply cut end inserts to appropriate marked wire size and insert conductor into connector. Suitable for use with either copper or aluminum conductors.

Specifications

Brand Name ILSCO Sub Brand ILSCO
Type USPA:INLINE SPLICE-WTRPRF Voltage Rating 600 V
Material Aluminum Color Black
Temperature Rating 90 °C Standards CSA File Number:LR-29601;UL Control Number:88X4;UL File Number:E125087;UL / CULUS Specification:UL 486D Listed
Application Watertight Underground In-Line Splice UPC 783669941104
