PANDUIT PV10-8R-L Pan-Term® Insulated Ring Terminal Loose Piece 12-10 AWG #8 Stud size

Manufacturer #:PV10-8R-L

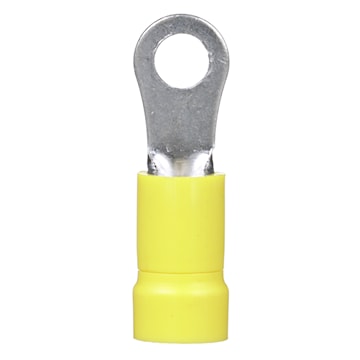

The PV10-8R-L Pan-TermĀ® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.


Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Ring Terminal Type Loose Piece
Conductor Size 12-10 AWG Stud Size #8
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Tin Plated
Color Yellow Barrel Type Grip Sleeve
Tang Type Ring Barrel Length 0.52 in
Barrel Configuration Funnel Entry Temperature Rating 221 °F
Width 0.31 in Standards UL 486A, UL 486B Listed, CSA C22.2 No. 65 Certified
UPC 074983801305
