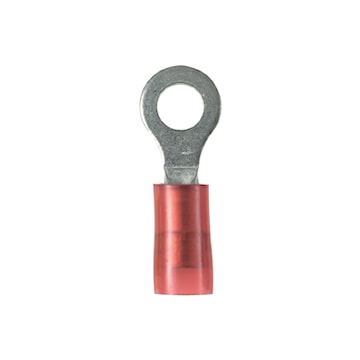

PANDUIT PN18-10R-C Pan-Term® Insulated Ring Terminal Loose Piece Ring Terminal 22-18 AWG #10 Stud size

Manufacturer #:PN18-10R-C


Ring terminal, nylon insulated. Ring tongue design assures a secure connection in high vibration applications. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.


Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Ring Terminal Type Ring Terminal
Conductor Size 22-18 AWG Stud Size #10
Voltage Rating 600 V Insulation Material Nylon
Material Copper Finish Tin Plated
Color Red Barrel Type Standard
Tang Type Ring Barrel Length 0.44 in
Temperature Rating 221 °F Width 0.31 in
Standards UL 587H, E52164 Listed, CSA LR31212 UPC 074983800063
