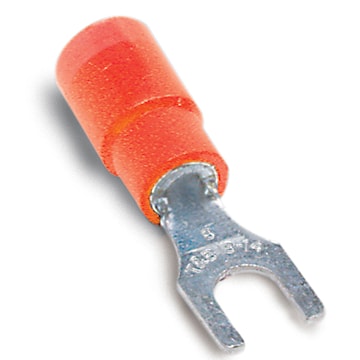

ABB INS 18RA-10FX Sta-Kon® Expanded Insulated Fork Terminal Short Sleeve 22 - 16 AWG #10 Stud size

Manufacturer:ABB INS
Manufacturer #:18RA-10FX

Description

Sta-KonĀ® Vinyl insulated fork, expanded insulation, enable easy installation because the mounting screw does not have to be completely removed. Brazed-seam barrel is serrated for high pull-out value. Terminal is high-conductivity electrolytic copper, electro-tin plated.

Specifications

Brand Name ABB Sub Brand Sta-Kon®
Item Name Expanded Insulated Fork Terminal Type Short Sleeve
Conductor Size 22 - 16 AWG Stud Size #10
Voltage Rating 600 V Insulation Material Vinyl
Material Copper Finish Electro Tin-Plated
Color Red Tang Type Fork
Temperature Rating 105 degrees C Width 7 in
Standards UL E9809 UPC 786210800943

Packages

1 - rarr_unit_1
