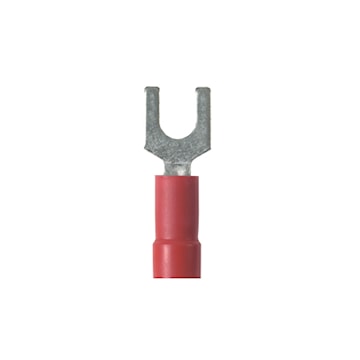

PANDUIT PV18-10F-CY Pan-Term® Insulated Fork Terminal Loose Piece Forks 22-16 AWG #10 Stud size

Manufacturer:PANDUIT
Manufacturer #:PV18-10F-CY
Documents Documents

Description

The PV18-10F-CY Pan-TermĀ® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Fork Terminal Type Fork Terminal
Conductor Size 22-16 AWG Stud Size #10
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Tin Plated
Color Red Barrel Type Funnel
Tang Size Fork Barrel Length 0.47 in
Barrel Configuration Funnel Entry Temperature Rating 221 °F
Width 7.9 mm Standards CSA certified C22.2 No. 65,UL Listed UL486A-486B
UPC 074983686490

Packages

100 - rarr_unit_1 500 - rarr_unit_2
