PANDUIT CANADA CORP. PV14-6F-C Pan-Term® Insulated Fork Terminal Loose-Piece 16-14 AWG
pccpv14-6f-c
PANDUIT CANADA CORP. PV14-6F-C Pan-Term® Insulated Fork Terminal Loose-Piece 16-14 AWG
Manufacturer:PANDUIT CANADA CORP.
Manufacturer #:PV14-6F-C
Description

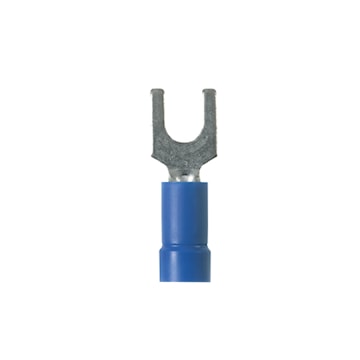

The PV14-6F-C Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Item Name | Insulated Fork Terminal | Type | Loose-Piece |
| Conductor Size | 16-14 AWG | Voltage Rating | 600 V |
| Insulation Material | PVC | Material | Copper |
| Finish | Tin Plated | Color | Blue |
| Barrel Type | Funnel | Tang Size | Fork |
| Barrel Length | 0.42 in | Barrel Configuration | Funnel Entry |
| Temperature Rating | 221 °F | Width | 7.9 mm |
| Standards | CSA Certified C22.2 No 65, UL Listed-UL486A-486B | UPC | 074983804061 |
