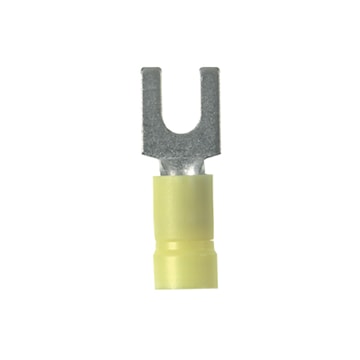

PANDUIT PV10-6F-L Pan-Term® Insulated Fork Terminal Loose-Piece 14-10 AWG #6 Stud size

Manufacturer:PANDUIT
Manufacturer #:PV10-6F-L
Documents Documents

Description

Fork terminal, vinyl insulated. Funnel entry. Fork design provides for fast and easy installation, without the need to remove fastener. Insulation support helps to prevent wire damage in bending applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL flammability UL 94V-0, maximum insulation temperature 105°C.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Fork Terminal Type Loose-Piece
Conductor Size 14-10 AWG Stud Size #6
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Tin Plated
Color Yellow Barrel Type Funnel
Tang Size Fork Barrel Length 0.41 in
Barrel Configuration Funnel Entry Temperature Rating 221 °F
Width 7.9 mm Standards C22.2 No. 65, UL486A-486B, 587H, E52164, LR312120
UPC 074983804368

Packages

50 - rarr_unit_1 100 - rarr_unit_2 C - C 500 - rarr_unit_3
