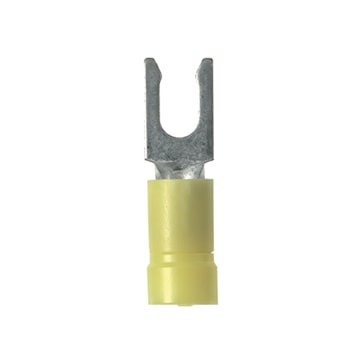

PANDUIT PV10-8LF-L Pan-Term® Insulated Fork Terminal Loose-Piece 12-10 AWG #8 Stud size

Manufacturer #:PV10-8LF-L
Documents Documents


The PV10-8LF-L Pan-TermĀ® Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.


Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Fork Terminal Type Loose-Piece
Conductor Size 12-10 AWG Stud Size #8
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Tin Plated
Color Yellow Barrel Type Funnel
Tang Size Fork Barrel Length 0.52 in
Barrel Configuration Funnel Entry Temperature Rating 221 °F
Width 7.9 mm Standards CSA Certified C22.2 No 65, UL Listed-UL486A-486B V
UPC 074983808144
