PANDUIT PN10-8F-L FORK TERM 12-10 8NYL

Manufacturer:PANDUIT
Manufacturer #:PN10-8F-L
Documents Documents

Description

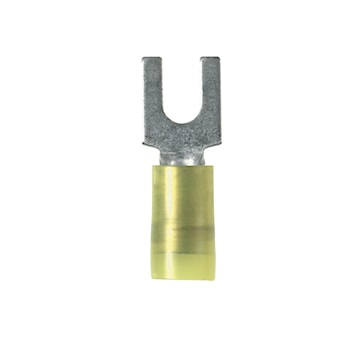

The PN10-8F-L Pan-TermĀ® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Type Fork Terminal Voltage Rating 600 V
Material Copper Finish Tin-Plated
Color Yellow Barrel Type Grip Sleeve
Barrel Length 0.52 in Temperature Rating 221 F
Width 0.37 in Standards UL Listed 587H E52164; CSA Certified LR31212
UPC 074983803187

Packages

50 - rarr_unit_1 100 - rarr_unit_2 500 - rarr_unit_3
