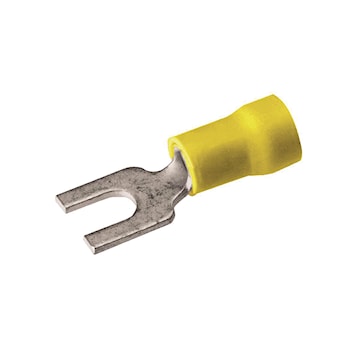

HUBBELL TP108F Vinylug™ Insulated Fork Terminal TP-F, Short Sleeve 12-10 AWG #6 - #8 Hole Stud size

Manufacturer:HUBBELL
Manufacturer #:TP108F

Description

Insulated Brazed Fork Terminal, Insulated Brazed Fork Terminal, Smooth Entry, #12-#10, 600V, #6-#8 Stud, Vinyl Insulated, Tin Plated.

Specifications

Brand Name Burndy Sub Brand Vinylug™
Item Name Insulated Fork Terminal Type TP-F, Short Sleeve
Conductor Size 12-10 AWG Stud Size #6 - #8 Hole
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Electro-Tin Plated
Color Yellow Insulation Diameter 0.26 in
Temperature Rating 105 °C Wire Strip Length 19/64 in
Length 1.03 in Width 0.31 in
Standards UL Listed, CSA Certified, RoHS Compliant Application Commercial and Light Duty Industrial Control and Power Circuit Applications
UPC 781810710685
