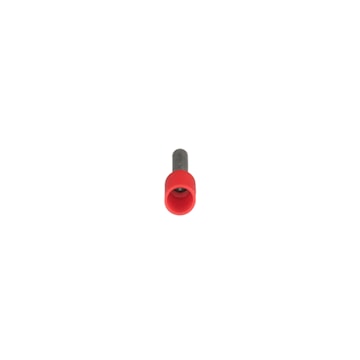

PANDUIT CANADA CORP. FSD77-8-D DIN 46228 Part 4, UL 486F Listed, CSA Insulated DIN Ferrule Copper 0.57 in Overall Length, Red
pccfsd77-8-d
PANDUIT CANADA CORP. FSD77-8-D DIN 46228 Part 4, UL 486F Listed, CSA Insulated DIN Ferrule Copper 0.57 in Overall Length, Red
Manufacturer:PANDUIT CANADA CORP.
Manufacturer #:FSD77-8-D
Description
Covered ferrules single wire red DIN end sleeve, 1.0mm², 8mm pin length.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Item Name | Insulated DIN Ferrule | Type | Covered Single Wire Ferrule |
| Conductor Size | 18 AWG | Strip Length | 14.5 mm |
| Overall Length | 0.57 in | Contact Material | Copper |
| Insulating Material | Polypropylene | Color | Red |
| Finish | Tin Plated | Temperature Rating | 221 °F |
| Standards | CSA Certified, UL 486F Listed | UPC | 074983762521 |
