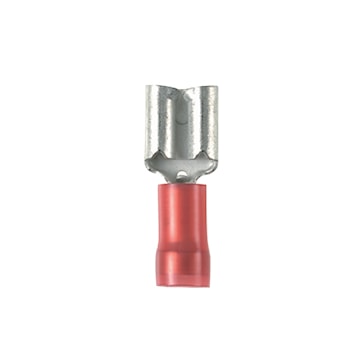

PANDUIT DNF18-205-C Pan-Term® Insulated Female Disconnect Terminal Loose-Piece 22-18 AWG Brass
pccdnf18-205-c
PANDUIT DNF18-205-C Pan-Term® Insulated Female Disconnect Terminal Loose-Piece 22-18 AWG Brass
Manufacturer:PANDUIT
Manufacturer #:DNF18-205-C
Description
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Item Name | Insulated Female Disconnect Terminal | Type | Loose-Piece |
| Conductor Size | 22-18 AWG | Tab Size | 1/4 x 0.032 in |
| Width | 0.25 in | Voltage Rating | 300 V |
| Insulation Material | Nylon | Material | Brass |
| Finish | Tin Plated | Length | .76 in |
| Color | Red | Barrel Type | Insulation Grip Sleeve |
| Terminal Connection | Funnel Entry | Temperature Rating | 194 °F |
| Standards | UL 310 Listed, UL Listed 20H3 E78522, CSA Certified LR31212, C22.2 No.153 | UPC | 074983826407 |
