PANDUIT DNF14-250FI-L Pan-Term® Insulated Female Disconnect Terminal Loose-Piece 16-14 AWG Brass

Manufacturer:PANDUIT
Manufacturer #:DNF14-250FI-L

Description

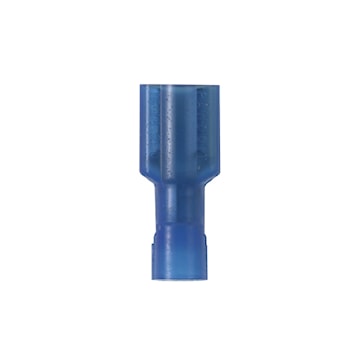

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 50.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Female Disconnect Terminal Type Loose-Piece
Conductor Size 16-14 AWG Tab Size 1/4 x 0.032 in
Width 0.36 in Voltage Rating 600 V
Insulation Material Nylon Material Brass
Finish Tin Plated Color Blue
Barrel Type Grip Sleeve Terminal Connection Funnel Entry
Temperature Rating 221 °F Standards UL 310 Listed, UL Listed 20H3 E78522, CSA Certified LR31212, C22.2 No.153
UPC 074983119066
