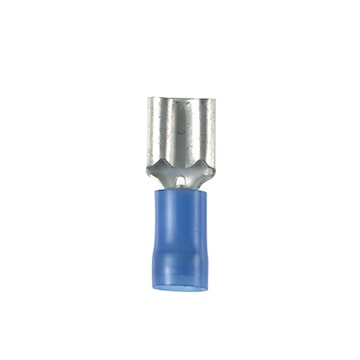

PANDUIT DNF14-187-C Pan-Term® Insulated Female Disconnect Terminal Loose-Piece 16-14 AWG Brass

Manufacturer:PANDUIT
Manufacturer #:DNF14-187-C
Documents Documents

Description

The vibration resistant female disconnect in is made of brass and is tin-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Specifications

Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Female Disconnect Terminal Type Loose-Piece
Conductor Size 16-14 AWG Tab Size 0. 187 x 0.032 in
Width 0.23 in Voltage Rating 300 V
Insulation Material Nylon Material Brass
Finish Tin Plated Color Blue
Barrel Type Grip Sleeve Terminal Connection Funnel Entry
Temperature Rating 194 °F Standards UL 310 Listed
UPC 074983827145

Packages

100 - rarr_unit_1 500 - rarr_unit_2
