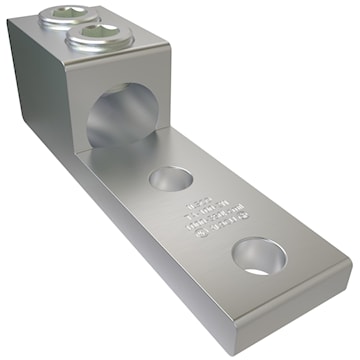

ILSCO CANADA NEWCO ULC TA-1000-2N ILSCO Mechanical Lug 1000 - 350 kcmil Aluminum
ilsta10002n
ILSCO CANADA NEWCO ULC TA-1000-2N ILSCO Mechanical Lug 1000 - 350 kcmil Aluminum
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:TA-1000-2N
Description
Dual rated aluminum mechanical Lug, one conductor, manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ILSCO |
| Item Name | Mechanical Lug | Type | TA:1 CONDUCTOR AL/CU |
| Conductor Type | Aluminum/Copper | Conductor Size | 1000 - 350 kcmil |
| Number of Bolt Holes | 2 | Material | Aluminum |
| Series | TA | Number of Conductors | 1 |
| Bolt Size | 1/2 in | Voltage Rating | 35,000 V |
| Mounting Hole Size | 0.562 in | Temperature Rating | 90 degrees C |
| Finish | Tin Plated | Color | Silver |
| For Use With | Circuits Rated 35 kV or Less | Standards | CSA File Number: LR-29601, UL Control Number: 453G, UL File Number: E6207, UL / CULUS Specification: UL 486A/B Listed |
| Application | Mechanical Lug, One Conductor | UPC | 783669894868 |
