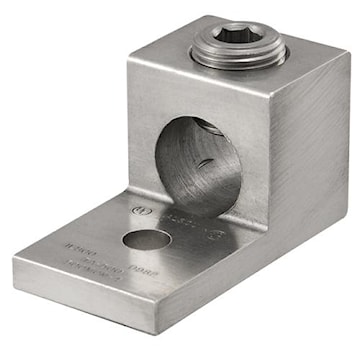

ILSCO TA-500 ClearChoice Mechanical Lug 500 kcmil - 4 AWG 6061-T6 Aluminum Alloy

Manufacturer #:TA-500


Dual rated aluminum mechanical Lug, one conductor, manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.


Brand Name Ilsco Sub Brand ClearChoice
Item Name Mechanical Lug Type TA:1 CONDUCTOR AL/CU
Conductor Type Aluminum and Copper Conductor Size 500 kcmil - 4 AWG
Material 6061-T6 Aluminum Alloy Number of Conductors 1
Bolt Size 3/8 in Tongue Size 1.594 in L x 1-1/2 in W x 0.312 in T
Voltage Rating 2000 V Mounting Hole Size 13/32 in
Temperature Rating 90 °C Finish Electro-Tin Plated
Color Silver Dimensions 2-13/16 in L x 1-1/2 in W x 1.562 in H
Standards UL 486A-B, UL File Number E6207, CSA Certified, CSA File Number LR29601 Application For Terminating Connector
UPC 783669891010
