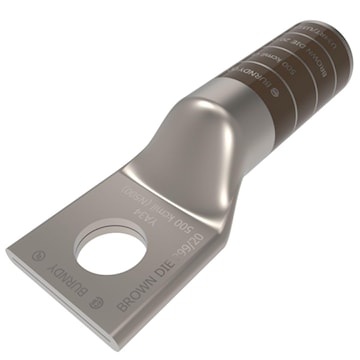

HUBBELL YA34 Hylug™ Compression Lug 1 Holes Copper 500 kcmil, 240 mm² for Class 2 Conductor IN 0.625 in Stud size
burya34
HUBBELL YA34 Hylug™ Compression Lug 1 Holes Copper 500 kcmil, 240 mm² for Class 2 Conductor IN 0.625 in Stud size
Manufacturer:HUBBELL
Manufacturer #:YA34
Description
Copper Compression Lug, 1 Hole w/o Inspection Window, 500 kcmil, 5/8" Stud, Long Barrel, Electro Tin Plated.
Specifications
| Brand Name | Burndy | Sub Brand | Hylug™ |
| Item Name | Compression Lug | Type | Straight, Non-Insulated |
| Conductor Size | 500 kcmil, 240 mm² for Class 2 Conductor IN | Number of Holes | 1 |
| Stud Size | 0.625 in | Overall Length | 4.39 in |
| Color Code | Brown | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long |
| Terminal Connection | Slender Flange | Finish | Tin Plated |
| Standards | UL Listed At 90 °C, 600 V - 35 kV, CSA Certified, RoHS Compliant | Application | Code Conductor |
| UPC | 781810505755 |
