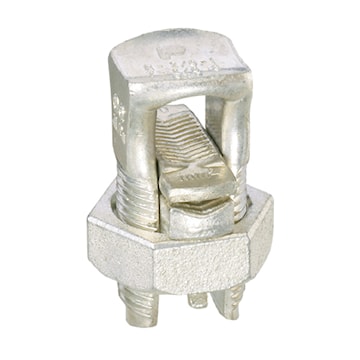

PANDUIT SBCT2/0-Q Pan-Lug™ Split Bolt Connector Dual Rated, Mechanical 2-2/0 AWG Stranded Aluminum/Copper
Description
The SBCT2/0-Q Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.
Specifications
Brand Name | Panduit | Sub Brand | Pan-Lug™ |
Item Name | Split Bolt Connector | Type | Dual Rated, Mechanical |
Main Conductor Size | 2-2/0 AWG Stranded | Nut Size | 1.05 in |
Voltage Rating | 600 V | Material | Copper Alloy |
Series | SBCT | Tap Conductor Size | 2-2/0 AWG Stranded |
Conductor Type | Aluminum/Copper | Inner Diameter | 0.42 in |
Overall Length | 1.71 in | Finish | Tin Plated |
Tightening Torque | 385 in-lb | Color | Silver |
Temperature Rating | 90 °C | Dimensions | 0.79 in W |
Standards | CSA Certified, UL AL9CU Listed, UL 47FL Listed, RoHS Compliant | UPC | 074983707720 |
