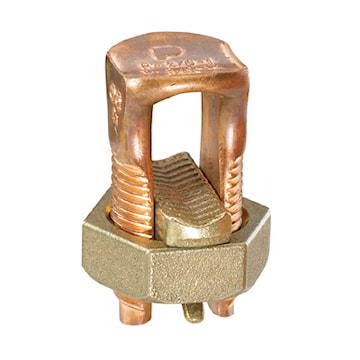

PANDUIT SBC1/0-L Pan-Lug™ Split Bolt Connector Type SBC, Extra Long Body 4-1/0 AWG Stranded Copper

Manufacturer #:SBC1/0-L
Documents Documents


Pan-Lug™ Split bolt. Copper conductor range 4 to 1/0 AWG. Type SBC mechanical connector. Copper to copper connection. High strength copper for corrosion resistance, extra long body, range taking, true hexagonal design for correct fit.


Brand Name Panduit Sub Brand Pan-Lug™
Item Name Split Bolt Connector Type Type SBC, Extra Long Body
Main Conductor Size 4-1/0 AWG Stranded Nut Size 0.93 in
Voltage Rating 600 V Material Copper
Tap Conductor Size 4 -1/0 AWG Stranded Conductor Type Copper
Inner Diameter 0.37 in Overall Length 1.55 in
Finish Unplated Tightening Torque 385 in-lb
Standards UL Listed, CSA C22.2 No. 65-13, RoHS Compliant UPC 074983627257
