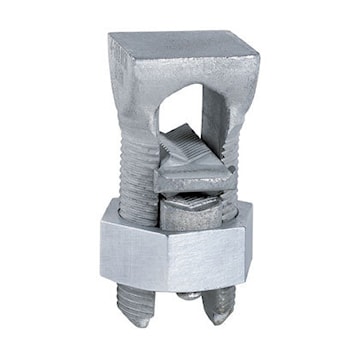

PANDUIT SBA2/0-Q Pan-Lug™ Split Bolt Connector Dual Rated, Mechanical 2-2/0 AWG Stranded Aluminum/Copper

Manufacturer:PANDUIT
Manufacturer #:SBA2/0-Q
Documents Documents

Description

Split bolt, aluminum dual rated, type SBA, 2/0 STR - #8 STR AWG.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Split Bolt Connector Type Dual Rated, Mechanical
Main Conductor Size 2-2/0 AWG Stranded Nut Size 1.21 in
Voltage Rating 600 V Material Aluminum Alloy
Series SBA Tap Conductor Size 8-2/0 AWG Stranded
Conductor Type Aluminum/Copper Inner Diameter 0.44 in
Overall Length 1.92 in Finish Tin Plated
Tightening Torque 385 in-lb Color Silver
Temperature Rating 90 °C Dimensions 0.88 in W
Standards CSA Certified, UL 486B Listed, RoHS Compliant UPC 074983903078
