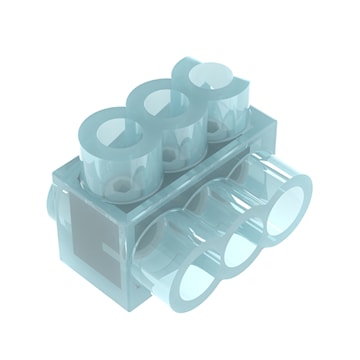

PANDUIT PCSB4-3S-12Y Pan-Lug™ Multi-Tap Connector Mechanical, Single-Sided 3 Ports 14-4 AWG Stranded Aluminum, PVC Insulation

Manufacturer #:PCSB4-3S-12Y
Documents Documents


The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.


Brand Name Panduit Sub Brand Pan-Lug™
Item Name Multi-Tap Connector Type Mechanical, Single-Sided
Voltage Rating 600 V Number of Ports 3
Conductor Size 14-4 AWG Stranded Material Aluminum, PVC Insulation
Color/Finish Clear Temperature Rating 90 °C
Standards UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C Application Aluminum or Copper Code Conductors
UPC 074983597574
