ilspct-4-350

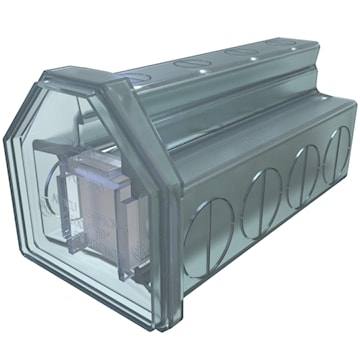

ILSCO CANADA NEWCO ULC PCT-4-350 ClearTap® Multi-Tap Connector PCT, Insulated 4 Ports 350 kcmil - 6 AWG AL/CU
ilspct-4-350
ILSCO CANADA NEWCO ULC PCT-4-350 ClearTap® Multi-Tap Connector PCT, Insulated 4 Ports 350 kcmil - 6 AWG AL/CU
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:PCT-4-350
Description
Dual rated Insulated multi-tap four port connector for street lighting. Transparent flexible insulating cover. Captive pressure screws. Self-closing openings. Access from both sides of connector. Provides greater versatility. Reduces inventory. Ensures reliability. For copper or aluminum conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearTap® |
| Item Name | Multi-Tap Connector | Type | PCT, Insulated |
| Voltage Rating | 600 V | Number of Ports | 4 |
| Number of Conductors | 4 | Conductor Size | 350 kcmil - 6 AWG |
| Material | AL/CU | Color/Finish | Clear |
| Conductor Type | Stranded | Connection Type | Mechanical |
| Stud Size | 5/16 in | Dimensions | 5.06 in L x 2.69 in W x 2.65 in H |
| Temperature Rating | -45 to 90 °C | Standards | UL 486A-B, UL File Number E6207, CSA File Number LR29601 |
| Application | Connecting Tap | UPC | 783669700589 |
