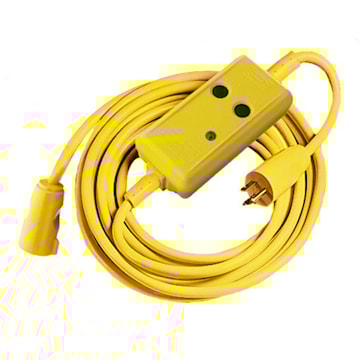

HUBBELL CANADA ULC GFP25C15A GFCI LINECORD, IND, 15A120V,

Manufacturer:HUBBELL CANADA ULC
Manufacturer #:GFP25C15A
Documents Documents

Description

Circuit Guard® industrial grade portable GFCI line cords with straight blade and automatic reset.


Automatically sets the GFCI for use upon plug in and after the loss of primary power

After a ground fault condition, unit must be reset by pushing the reset button

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Circuit Guard®
Item Name GFCI Cordset with Automatic Set Type Fabricated, Extra Heavy-Duty, Portable, Straight Blade, Rectangular
Color Yellow Wire Gauge Size 14 AWG
Number of Conductors 3 Voltage Rating 120 V
Conductor Material Copper Jacket Material PVC
Strands Multi Outside Diameter 0.245 in
Length 25 ft Amperage Rating 15 A
Construction Fabricated Insulation Material Elastomer
NEMA Rating 5-15R Temperature Rating -34 to 65 °C
Standards NEMA WD1 and WD5, UL498 and UL943, UL817 Application Line Cord with Male/Female Ends
UPC 783585829555
