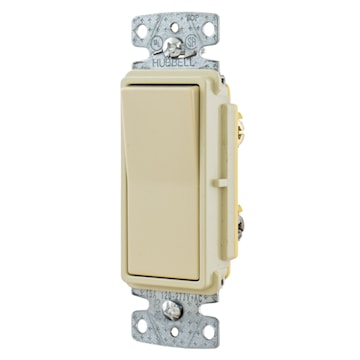

HUBBELL RSD315I AC Decorator Switches 3-Way, General Purpose, Standard Rocker Switch 120/277 V, 15 A, Ivory

Manufacturer #:RSD315I
Documents Documents


tradeSELECT® Decorator quiet rocker switch. 3-way and 15 A at 120 to 277 VAC switch. Self-grounding, push, back and side-wire. Smooth, quiet rocker. Ultrasonically welded cover and base. -20 to 60°C operating temperature. Light glows through the top portion of the rocker when switch is in the off position.


Brand Name Hubbell Wiring Device Kellems Sub Brand AC Decorator Switches
Item Name Rocker Switch Type 3-Way, General Purpose, Standard
Voltage Rating 120/277 V Amperage Rating 15 A
Contact Configuration 2 Position Number of Poles 1
Number of Positions 2 Power Rating 4155 W
Contact Rating Per UL 20 Actuator Rocker
Mounting Screw Connection Push Wired, Back and Side Wired
Terminal Type Screw Enclosure Standard None
Temperature Rating -20 °C Minimum without Impact, 60 °C Maximum Material Composite
Color Ivory Operating Cycles 30000
Environmental Conditions Indoor Dry unless protected by additional means Standards NEMA WD-1, UL20, UL E3896 Listed, CSA Certified
Application Residential Wiring Devices UPC 883778101243
