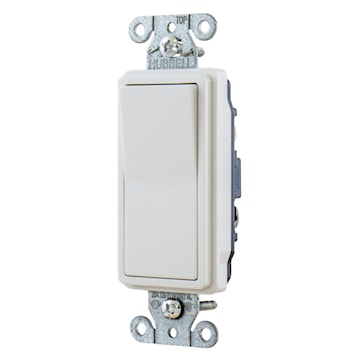

HUBBELL CANADA ULC DS320W AC Decorator Switches Rocker/Decorator Rocker Switch 120 to 277 VAC, 20 A, Positive Snap White

Manufacturer:HUBBELL CANADA ULC
Manufacturer #:DS320W
Documents Documents

Description

Style LineĀ® Specification grade decorator series back and side-wired rocker switch. 2 handle positions. Thread cleaning captive mounting screw. Steel, zinc-plated bridge is corrosion-resistant. Automatic self-grounding staple. Thermoplastic rocker. Silver alloy contacts.


Thread cleaning captive mounting screw

Steel, zinc plated bridge is corrosion resistant

Automatic self-grounding staple

Specifications

Brand Name Hubbell Sub Brand AC Decorator Switches
Type Non-Reversing Voltage Rating 120 - 277 VAC
Amperage Rating 20 A Contact Configuration 2 Position
Number of Poles 1,1 Series General Purpose
Contact Rating Per UL 20 Actuator Rocker
Mounting Screw Mount Connection Terminal Screw
Enclosure Standard None Material Thermoplastic
Color White Operating Cycles 50,000 Cycles
Environmental Conditions Indoor Dry unless protected by additional means Standards UL Listed
Application Commercial Heavy Duty UPC 783585108407
