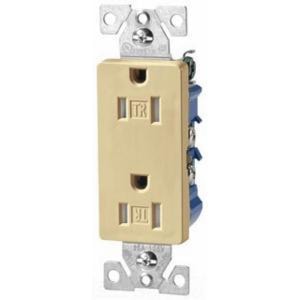

COOPER WIRING DEVICES TR1107V Tamper-Resistant, Decorator Duplex Receptacle 15 A, Ivory
Description
Decorator standard grade receptacle, 2-pole, 3-wire grounding 15A/125VAC. • Tamper resistant receptacles provide compliance with 2014 NEC® Article 406.12 which states that all 15A and 20A, 125V/AC receptacles installed in dwelling units must be tamper resistant. Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations. Patented built-in wire stripper for #14 and #12 AWG wire to speed installation. Push-in terminals accept #14 AWG solid wire for quick installation. Patented built-in wire looper for pre-looping. High impact-resistant thermoplastic face and back body eliminates breakage. Double-wipe ground contacts ensure long-term ground retention. Easy access split circuit break-off tab. Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility. Terminal screws backed out and ready for wiring. Side wire terminals accept up to #10 AWG solid wire.
Specifications
Brand Name | Eaton | Item Name | Duplex Receptacle |
Type | Tamper-Resistant, Decorator | Grade | Standard |
Voltage Rating | 125 V | Amperage Rating | 15 A |
Number of Poles | 2 | Number of Wires | 3 |
NEMA Configuration | 5-15R | Connection Type | Side and Push, Screw |
Conductor Size | 14-10 AWG | Material | Thermoplastic |
Color | Ivory | Dielectric Strength | 2000 V |
Grounding | Grounding | Contact Material | Brass |
Dimensions | 1.3 in L x 0.69 in W x 3.81 in H | Mounting Type | Flush |
Temperature Rating | -20 to 70 °C | Standards | cULus Listed, NOM Certified |
UPC | 032664666438 |
