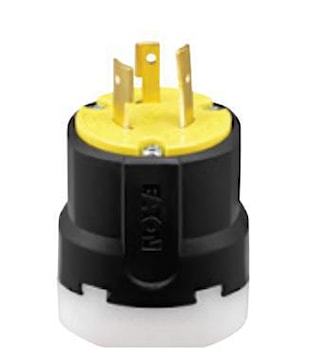

COOPER WIRING AHCL520P Arrow Hart Color Coded Locking Plug 20 A, 125 V, Industrial Grade, Ultra Grip

Manufacturer:COOPER WIRING
Manufacturer #:AHCL520P

Description

Eaton Arrow hart color coded locking plug, locking plug, No.14-8 AWG, 20 A, industrial, 125 V, back, yellow, black, ultra grip, nylon, L5-20, two-pole, three-wire, nylon, 0.38 - 1 inch (9.5 - 25.4 mm).

Specifications

Brand Name Eaton Sub Brand Arrow Hart
Item Name Color Coded Locking Plug Type Industrial Grade, Ultra Grip
Number of Wires 3 Number of Poles 2
Voltage Rating 125 V Amperage Rating 20 A
Conductor Size 14-8 AWG NEMA Configuration NEMA L5-20
Color/Finish Yellow and Black Cord Size 0.38 - 1 in dia
Terminal Connection Back Wire Terminal Clamp Temperature Rating -40 °C to 60 °C
Contact Material Tin Plated Bronze Dielectric Strength 1000 V
Material Nylon Dimensions 2.23 in L x 2.1 in W x 2.69 in H
Environmental Conditions V2 Flammability Rated Per UL94 Standards cULus Listed, NOM Certified, NAFTA and RoHS Compliant
UPC 032664755781
