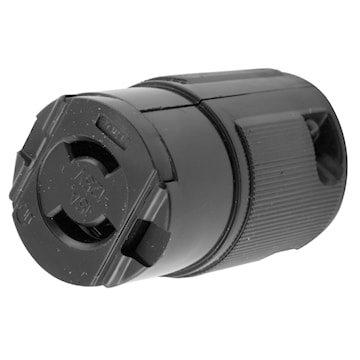

HUBBELL HBL7464V Twist-Lock®, Valise® Locking Connector Female, Midget Locking 15 A, 125 V, 2 Ports 2 Conductors Black

Manufacturer #:HBL7464V
Documents Documents


Hubbell VALISE twist-lock cable plugs and connectors are made of one piece yellow thermoplastic locking blade insert and cover that hold securely the cable with 2 screws (full black model available). Available in black or white, they follow NEMA lock coding version 2-3 pole, 20-30 amp, 125-250 volts.


Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Valise®
Item Name Locking Connector Type Female, Midget Locking
Voltage Rating 125 V Amperage Rating 15 A
Conductor Size 14-12 AWG Number of Conductors 2
Connection Type Pressure Screw Material Composite
Color Black Number of Ports 2
Length 1.06 in Mounting Cord Mounted
NEMA Rating ML-1R Temperature Rating -25 to 75 °C with Impact, -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Heavy Duty Industrial
UPC 783585237251
