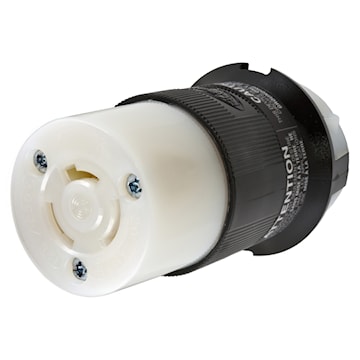

HUBBELL HBL7314C Twist-Lock®, Insulgrip® Locking Connector Standard, Straight 20 A, 125/250 V, 3 Ports 3 Conductors Black and White

Manufacturer #:HBL7314C
Documents Documents


Twist-LockĀ® standard connector body made of nylon with 3 pole, 3 wire non-grounding, 125/250 V AC, 20 A. 0.325 to 0.93 inch cord diameter.


Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Insulgrip®
Item Name Locking Connector Type Standard, Straight
Voltage Rating 125/250 V Amperage Rating 20 A
Conductor Size 14-12 AWG Number of Conductors 3
Connection Type Pressure Screw Material Composite
Color Black and White Number of Ports 3
Length 2.26 in Mounting Cord Mounted
NEMA Rating Non-NEMA Temperature Rating -25 to 75 °C with Impact, -40 to 75 °C without Impact
Standards UL 498 Application Heavy Duty Industrial
UPC 783585037509
