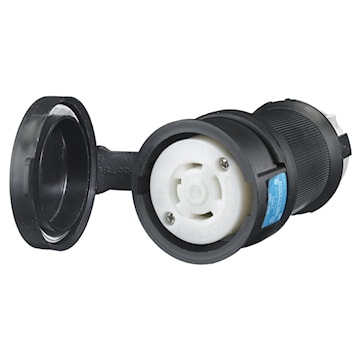

HUBBELL HBL2723SW Twist-Lock®, Watertight Safety-Shroud® Locking Connector Female, Standard 30 A, 250 VAC, 3 Ports 4 Conductors Black and White

Manufacturer #:HBL2723SW
Documents Documents


Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.


Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Watertight Safety-Shroud®
Item Name Locking Connector Type Female, Standard
Voltage Rating 250 VAC Amperage Rating 30 A
Conductor Size 12-8 AWG Number of Conductors 4
Connection Type Pressure Screw Material Composite
Color Black and White Number of Ports 3
Length 2.75 in Mounting Cord Mounted
NEMA Rating L15-30R Temperature Rating -25 to 75 °C with Impact, -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Heavy Duty Industrial
UPC 783585231860
