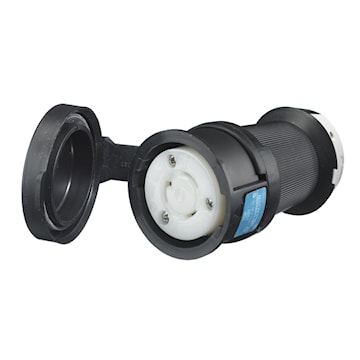

HUBBELL HBL2323SW Twist-Lock®, Watertight Safety-Shroud® Locking Connector Female, Standard 20 A, 250 V, 2 Ports 3 Conductors Black and White

Manufacturer #:HBL2323SW
Documents Documents


Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.


Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Watertight Safety-Shroud®
Item Name Locking Connector Type Female, Standard
Voltage Rating 250 V Amperage Rating 20 A
Conductor Size 12-10 AWG Number of Conductors 3
Connection Type Pressure Screw Material Composite
Color Black and White Number of Ports 2
Length 2.57 in Mounting Cord Mounted
NEMA Rating L6-20R Temperature Rating -25 to 75 °C with Impact, -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Heavy Duty Industrial
UPC 783585231129
