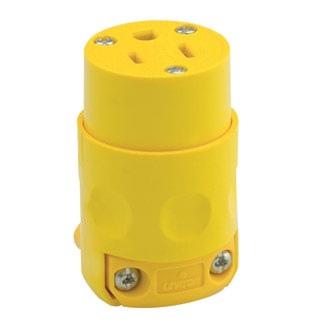

LEVITON MANUFACTURING 515CV Straight Blade Connector Straight Blade 15 A, 125 V, 2 Ports 3 Conductors Yellow
lev515cv
LEVITON MANUFACTURING 515CV Straight Blade Connector Straight Blade 15 A, 125 V, 2 Ports 3 Conductors Yellow
Manufacturer:LEVITON MANUFACTURING
Manufacturer #:515CV
Description
Leviton offers a large selection of 15, 20, 30 and 50 Amp Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Specifications
| Brand Name | Leviton | Sub Brand | RESIDENTIAL PLUGS AND CONNECT |
| Item Name | Straight Blade Connector | Type | Straight Blade |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 18-12 AWG | Number of Conductors | 3 |
| Connection Type | Screw Terminal | Material | PVC |
| Color | Yellow | Contact Material | Brass |
| Number of Ports | 2 | Screw Type | Steel,Zinc-Plated |
| Length | 2.61 in | Diameter | 1.54 in |
| Mounting | Cable | NEMA Rating | 5-15R |
| Temperature Rating | -40 °C to 60 °C | Standards | ANSI C73, UL 498, UL File Number E13393, CSA File Number LR406, CSA C22.2 No. 42, NOM 057 Certified, NEMA WD-6 |
| Application | Commercial | UPC | 078477841334 |
