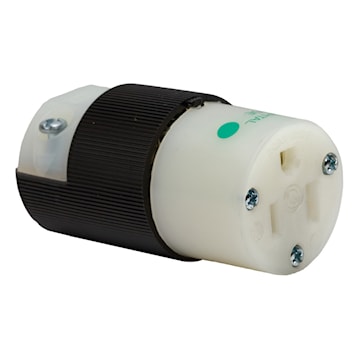

HUBBELL HBL8219C Insulgrip® Straight Blade Female Connector Standard, Hospital Grade 15 A, 125 V, 2 Ports 3 Conductors Black and White

Manufacturer:HUBBELL
Manufacturer #:HBL8219C
Documents Documents

Description

Hubbell INSULGRIP strait blade cable plugs and connectors are made of white nylon locking blade insert, black grip housing and 1 piece screw cable clamp. They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts. Strait or 90 degree angled models available.

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Insulgrip®
Item Name Straight Blade Female Connector Type Standard, Hospital Grade
Voltage Rating 125 V Amperage Rating 15 A
Conductor Size 14-12 AWG Number of Conductors 3
Connection Type Screw Terminal Material Composite
Color Black and White Number of Ports 2
Length 2.78 in Mounting Cord Mounted
NEMA Rating 5-15R Temperature Rating -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Hospital Grade
UPC 783585179506
