hubhbl5869vy

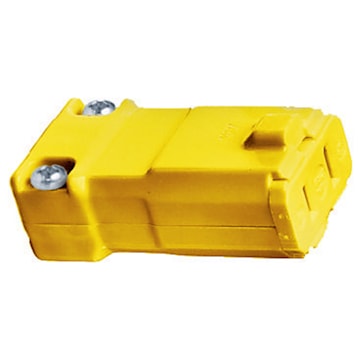

HUBBELL CANADA ULC HBL5869VY Valise® Straight Blade Female Connector Standard 15 A, 125 V, 2 Ports 2 Conductors Yellow
hubhbl5869vy
HUBBELL CANADA ULC HBL5869VY Valise® Straight Blade Female Connector Standard 15 A, 125 V, 2 Ports 2 Conductors Yellow
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL5869VY
Description
Hubbell VALISE strait blade cable plugs and connectors are made of one piece yellow thermoplastic strait blade insert and cover that hold securely cable with 2 screws (full black, yellow & white model available). They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts.
Hinged one piece body design for easy assembly
Two captive multiple drive assembly screws
Powerful cord grips prevent conductor slippage and strain
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Valise® |
| Item Name | Straight Blade Female Connector | Type | Standard |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 2 |
| Connection Type | Screw Terminal | Wattage | 1875 W |
| Material | Composite | Color | Yellow |
| Number of Ports | 2 | Length | 2.38 in |
| Mounting | Cord Mounted | NEMA Rating | 1-15R |
| Temperature Rating | -40 to 75 °C without Impact | Standards | UL 498, NEMA WD-1, WD-5 |
| Application | Industrial/Commercial | UPC | 783585013237 |
