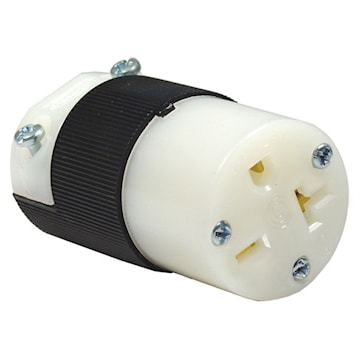

HUBBELL CANADA ULC HBL5469C Insulgrip® Straight Blade Female Connector Standard 20 A, 250 V, 2 Ports 3 Conductors Black and White

Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL5469C
Documents Documents

Description

Insulgrip connector body made of nylon with 2 pole, 3 wire grounding, 20 A, 250 V, 0.23-0.72 inch, IP20.


Individual wiring terminals completely enclosed

Powerful, offsetting cord grips clamp on individual conductors

Fast lead assembly screws

Beveled housing prevents snagging

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Insulgrip®
Item Name Straight Blade Female Connector Type Standard
Voltage Rating 250 V Amperage Rating 20 A
Conductor Size 14-12 AWG Number of Conductors 3
Connection Type Screw Terminal Wattage 5000 W
Material Composite Color Black and White
Number of Ports 2 Length 2.78 in
Mounting Cord NEMA Rating 6-20R
Temperature Rating -40 to 75 °C without Impact Standards UL 498, NEMA WD-1, WD-5
Application Industrial/Commercial UPC 783585174853
