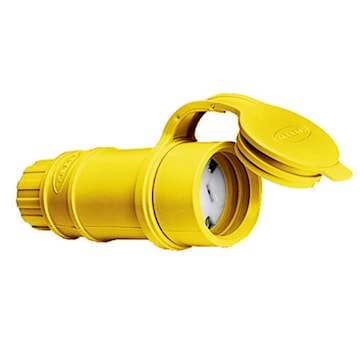

HUBBELL HBL15W47 Elastogrip® Straight Blade Female Connector Standard 15 A, 125 V, 2 Ports 3 Conductors Yellow

Manufacturer #:HBL15W47
Documents Documents


Elastogrip connector body made of nylon with 2 pole, 3 wire grounding, elastogrip, watertight, 15 A, 125 V, 0.3-0.655 inch, IP20.


Brand Name Hubbell Wiring Device Kellems Sub Brand Elastogrip®
Item Name Straight Blade Female Connector Type Standard
Voltage Rating 125 V Amperage Rating 15 A
Conductor Size 14-12 AWG Number of Conductors 3
Connection Type Screw Terminal Material Composite
Color Yellow Number of Ports 2
Length 4.03 in Mounting Cord Mounted
NEMA Rating 5-15R Temperature Rating -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Industrial/Commercial
UPC 783585013022
