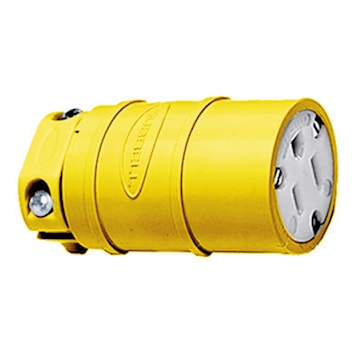

HUBBELL CANADA ULC HBL1547 Elastogrip® Straight Blade Female Connector Standard 15 A, 125 V, 2 Ports 3 Conductors Yellow

Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL1547
Documents Documents

Description

Hubbell ELASTOGRIP receptacles are standard strait blades 2 poles, 15-20 amp 125 volts and twist-lock 2-3 poles, 15-20-30 amp, 125-250-480-600 volts. Made of a white nylon insert connector into yellow elastomer thermoplastic housing with gland cable nut cable inser that providing protection against dust and water. A rubber closure cap seal is installed on female socket come as standard.


Thermoplastic elastomer housing

Dust and moisture seal around cord

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Elastogrip®
Item Name Straight Blade Female Connector Type Standard
Voltage Rating 125 V Amperage Rating 15 A
Conductor Size 14-12 AWG Number of Conductors 3
Connection Type Screw Terminal Material Thermoplastic
Color Yellow Number of Ports 2
Length 3.00 in Mounting Cord
NEMA Rating 5-15R Temperature Rating -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Industrial/Commercial
UPC 783585013039
