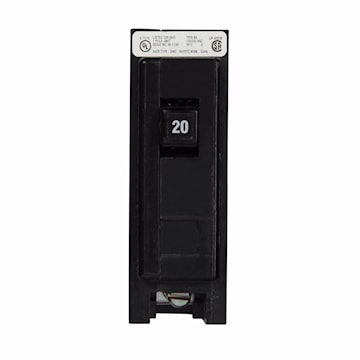

EATON INDUSTRIES (CANADA) CO BAB1020 Miniature Circuit Breaker Type BAB, QuickLag 20 A, 1 P, Extended Tang Line, Box Lug
cuhbab1020
EATON INDUSTRIES (CANADA) CO BAB1020 Miniature Circuit Breaker Type BAB, QuickLag 20 A, 1 P, Extended Tang Line, Box Lug
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:BAB1020
Description
Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, High intensity discharge,20 A,10 kAIC,Single-pole,120/240 V,Non-Interchangeable,Q7,BAB
Specifications
| Brand Name | Cutler Hammer | Item Name | Miniature Circuit Breaker |
| Type | Type BAB, QuickLag | Number of Poles | 1 |
| Interrupt Rating | 10 kA | Amperage Rating | 20 A |
| Voltage Rating | 120/240 VAC | Terminal Connection | Extended Tang Line, Box Lug |
| Mounting Type | Bolt-On | Phase | 1 |
| Frequency Rating | 50/60 Hz | Conductor Size | 14-4 AWG Aluminum/Copper |
| Trip Type | Non-Interchangeable, Thermal Magnetic | Temperature Rating | 0 - 40 °C Ambient |
| Dimensions | 3 in L x 1 in W x 2-1/2 in H | For Use With | Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline Panel Boards |
| Standards | UL Listed, CSA Certified, HACR Rated | Application | For Industrial Use |
| UPC | 786679301203 |
