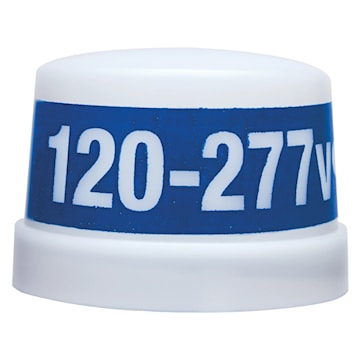

INTERMATIC LED4536SC Photocontrol Specifier Grade Twistlock Mount Mount

Manufacturer:INTERMATIC
Manufacturer #:LED4536SC
Documents Documents

Description

Electronic photo controls. 8 A electronic ballast. 1800 VA magnetic ballast. 1000 W tungsten. 2500 VAC dielectric strength. Locking type mounting.

Specifications

Brand Name Intermatic Item Name Photocontrol
Type Specifier Grade Voltage Rating 277 V
Ballast Load 1800 VA Sensor Type Electronic photocontrol
Mounting Locking Type Frequency Rating 50/60 Hz
Timing Range 2 to 5 s Material Polycarbonate
Color Blue Band,White Finish Plastic
Dimensions 77.775 x 85.725 x 69.9 mm Temperature Rating 70.0 degrees C
For Use With Lighting, pathways Standards ANSI C136.10, UL Recognized, cULus Listed, CAS Approval, Title CA 20 Listed, RoHS Compliant
Application Outdoor Lighting Control UPC 078275143647
