intek4537

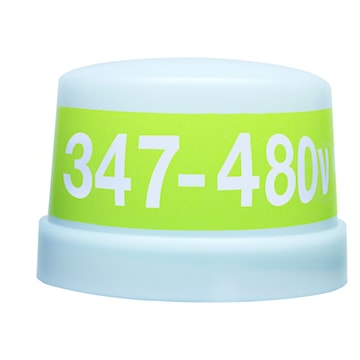

INTERMATIC EK4537 NightFox™ Electronic Photocontrol 347 - 480 VAC, <lt/>0.5 W at 277 VAC Locking-Type Mount
intek4537
INTERMATIC EK4537 NightFox™ Electronic Photocontrol 347 - 480 VAC, <lt/>0.5 W at 277 VAC Locking-Type Mount
Manufacturer:INTERMATIC
Manufacturer #:EK4537
Description
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.
Specifications
| Brand Name | Intermatic | Sub Brand | NightFox™ |
| Item Name | Electronic Photocontrol | Voltage Rating | 347 - 480 VAC |
| Ballast Load | 1800 VA | Sensor Type | Photoelectric |
| Mounting | Locking-Type | Series/Model | EK |
| Amperage Rating | 6 A | Frequency Rating | 50/60 Hz |
| Power Rating | <0.5 W at 277 VAC | Timing Range | 2 - 5 sec |
| Operation Cycles | 10000 | Color | White,Yellow Band |
| Dimensions | 3.395 in W X 2-3/8 H | Enclosure Type | NEMA 3, NEMA 410 |
| Temperature Rating | -40 to 70 °C | For Use With | High-Performance LED Fixtures |
| Standards | ANSI C136.10, RoHS Compliant, UL Listed, CSA C22.2 182.2-M1974 Standards, UL773 | Application | Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway Lighting, Landscape Lighting |
| UPC | 078275148970 |
Packages
| 1 - rarr_unit_1 |
