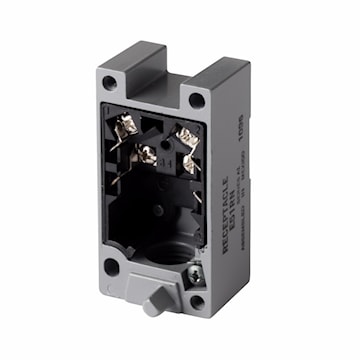

EATON E51RN Inductive Proximity Sensor Receptacle Assembled,Fiber Optic Sensor,Inductive,Proximity Sensor 10 - 30 VDC
cuhe51rn
EATON E51RN Inductive Proximity Sensor Receptacle Assembled,Fiber Optic Sensor,Inductive,Proximity Sensor 10 - 30 VDC
Manufacturer:EATON
Manufacturer #:E51RN
Description
Eaton E51 NEMA limit switch inductive proximity sensor, Assembled Inductive Proximity Fiber Optic Sensor, E51, Screw Terminals, 4-wire, 10-30 Vdc.
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor Receptacle |
| Type | Assembled,Fiber Optic Sensor,Inductive,Proximity Sensor | Connection | 1/2 in NPT |
| Output Circuit Type | 4-Wire | Dimensions | 2.92 in L x 1.54 in W x 1.06 in H |
| Series/Model | E51 | Voltage Rating | 10 - 30 VDC |
| Degree of Protection | IP67 | NEMA Rating | NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 |
| Connection Type | Screw Terminal | Material | Die-Cast Zinc |
| Mounting Type | Surface | Temperature Rating | -13 to 158 °F |
| For Use With | Assembled Inductive Proximity Fiber Optic Sensor and E51 Limit Switch Style Modular Sensor | Standards | CSA Certified, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 782113363127 |
