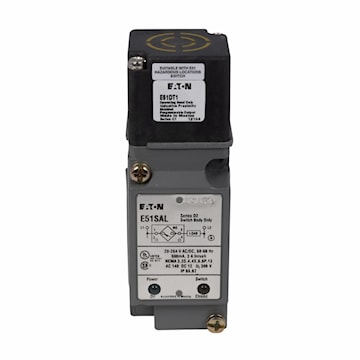

EATON E51ALT1 Inductive Proximity Sensor Limit Switch Modular Style, Shielded, Top Sensing 20 - 264 VAC/VDC
cuhe51alt1
EATON E51ALT1 Inductive Proximity Sensor Limit Switch Modular Style, Shielded, Top Sensing 20 - 264 VAC/VDC
Manufacturer:EATON
Manufacturer #:E51ALT1
Description
Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Proximity Sensor, E51 Modular, Top Sensing, Shielded, Output ON (1 LED per output), Screw Terminals, 500 mA AC/DC solid state output, NO or NC, 20-264 Vac/dc
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor |
| Type | Limit Switch Modular Style, Shielded, Top Sensing | Sensing Distance | 33 - 64 in |
| Connection | Screw Terminals | Output | 1 NO - 1 NC |
| Output Circuit Type | 2-Wire | Dimensions | 4.53 in L x 1.54 in W x 1.78 in H |
| Series/Model | E51 | Voltage Rating | 20 - 264 VAC/VDC |
| Operating Frequency | 15 - 50 Hz | Load Current | 500 mA AC/DC |
| Degree of Protection | IP67 | NEMA Rating | NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 |
| Connection Type | Screw Terminal | Material | Die-Cast Zinc |
| Mounting Type | DIN Rail | Temperature Rating | -13 to 158 °F |
| Environmental Conditions | 95% Non-Condensing Relative Humidity | Standards | CSA Certified, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 782113312743 |
