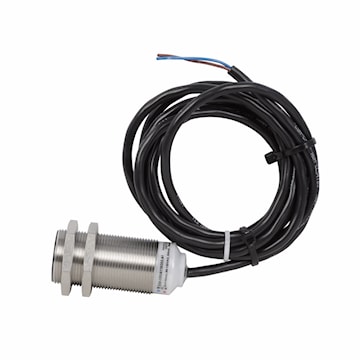

EATON INDUSTRIES (CANADA) CO E59-M30A115C02-D1 Inductive Proximity Sensor End Sensing, Programmable, Straight, Standard Range, Shielded 6 - 48 VDC

Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:E59-M30A115C02-D1

Description

Eaton iProx Sensor, E59, Straight, 30 mm, Shielded, 360° viewable LED, 6.6 ft, 300 mA at 6-48 Vdc, 1% sensing range, PVC, NPN/PNP auto configure, NO, 6-48 Vdc

Specifications

Brand Name Eaton Item Name Inductive Proximity Sensor
Type End Sensing, Programmable, Straight, Standard Range, Shielded Sensing Distance 15 mm
Shape Cylindrical Connection 2 m Cable
Output NPN/PNP Auto Configure, NO Auto Reset Output Circuit Type 3-Wire
Dimensions 30 mm dia x 2.74 in L x 1.18 in W x 1.18 in H Series/Model E59 iProx
Voltage Rating 6 - 48 VDC Operating Frequency 240 Hz
Load Current 300 mA Degree of Protection IP67, IP69K
NEMA Rating NEMA 4, 4X, 6, 6P, 12, 13 Connection Type Cable
Material 303 Stainless Steel Mounting Type Flush
Temperature Rating -40 to 158 °F Environmental Conditions NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Standards CE Certified, CSA Certified, UL Listed Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsStationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
UPC 786685879475
