cuhe57p30upn15c2

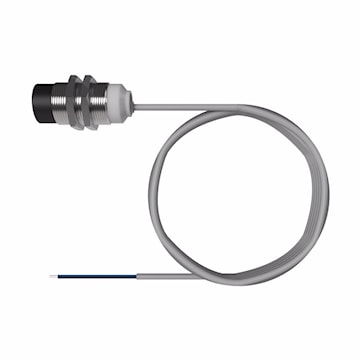

EATON E57P-30UPN15-C2 Inductive Proximity Sensor End Sensing, Standard, Unshielded 10 - 48 VDC
cuhe57p30upn15c2
EATON E57P-30UPN15-C2 Inductive Proximity Sensor End Sensing, Standard, Unshielded 10 - 48 VDC
Manufacturer:EATON
Manufacturer #:E57P-30UPN15-C2
Description
E57P PROX, 30MM,DC,UNSH,PNP,NO,STD,SN=15MM,2M CBL
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor |
| Type | End Sensing, Standard, Unshielded | Sensing Distance | 15 mm |
| Connection | 2 m Cable | Output | NO PNP Open Collector |
| Output Circuit Type | 3-Wire | Dimensions | 30 mm dia x 6 in L x 5 in W x 1.75 in H |
| Series/Model | E57P | Voltage Rating | 10 - 48 VDC |
| Operating Frequency | 500 Hz | Load Current | 300 mA |
| Degree of Protection | IP67, IP69K | NEMA Rating | NEMA 6P, 4X |
| Connection Type | Cable | Material | Stainless Steel |
| Temperature Rating | -40 to 158 °F | Standards | CE Certified, cUL, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 786685906560 |
