cuhe57p18spn5c2

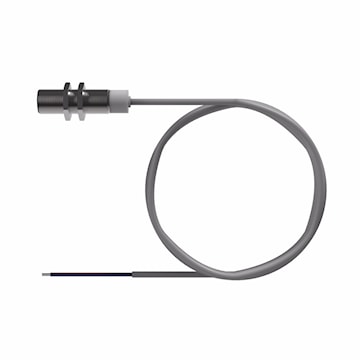

EATON E57P-18SPN5-C2 Inductive Proximity Sensor Barrel/Tubular, End Sensing, Shielded 10 - 48 VDC
cuhe57p18spn5c2
EATON E57P-18SPN5-C2 Inductive Proximity Sensor Barrel/Tubular, End Sensing, Shielded 10 - 48 VDC
Manufacturer:EATON
Manufacturer #:E57P-18SPN5-C2
Description
Eaton E57P PROX, 18MM, DC, SH, PNP, NO, STD, SN=5MM
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor |
| Type | Barrel/Tubular, End Sensing, Shielded | Sensing Distance | 5 mm |
| Connection | 2 m Cable | Output | NO |
| Output Circuit Type | 3-Wire, PNP | Dimensions | 18 mm dia x 2.59 in L |
| Series/Model | E57P | Voltage Rating | 10 - 48 VDC |
| Operating Frequency | 1200 Hz | Load Current | 300 mA |
| Degree of Protection | IP67, IP69K | NEMA Rating | NEMA 1, 4X, 6P |
| Connection Type | Cable | Material | Stainless Steel |
| Temperature Rating | -40 to 158 °F | Standards | CE Certified, CSA Certified, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 786685905990 |
