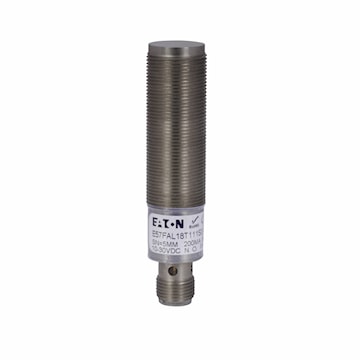

EATON E57FAL18T111SD-M Inductive Proximity Sensor Shielded, Tubular 10 - 30 VDC
cuhe57fal18t111sdm
EATON E57FAL18T111SD-M Inductive Proximity Sensor Shielded, Tubular 10 - 30 VDC
Manufacturer:EATON
Manufacturer #:E57FAL18T111SD-M
Description
E57 Series Tubular Metal Faced Inductive Proximity Sensor, 0.71 dia, Straight, Sensor dist: 5 mm, 100 mA max DC, NO PNP Open Collector, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input,
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor |
| Type | Shielded, Tubular | Sensing Distance | 5 mm |
| Connection | 4-Pin DC Micro M12 Connector | Output | NO PNP Open Collector |
| Output Circuit Type | 3-Wire | Dimensions | 0.71 in dia |
| Series/Model | E57 | Voltage Rating | 10 - 30 VDC |
| Load Current | 100 mA at 30 VDC | Degree of Protection | IP67 |
| NEMA Rating | NEMA 4, 4X, 6, 6P, 12, 13 | Connection Type | 4-pin M12 Connector |
| Material | Stainless Steel | Mounting Type | Flush |
| Temperature Rating | -13 to 158 °F | Standards | CE Certified, CSA Certified, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 782113878645 |
