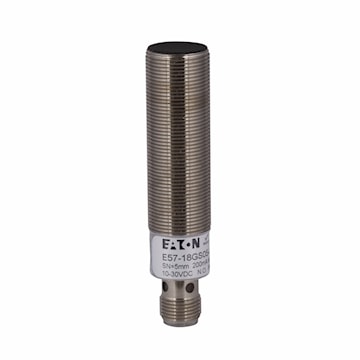

EATON INDUSTRIES (CANADA) CO E57-18GS05-GDB Inductive Proximity Sensor Shielded, Straight, End Sensing 10 - 30 VDC
cuhe5718gs05gdb
EATON INDUSTRIES (CANADA) CO E57-18GS05-GDB Inductive Proximity Sensor Shielded, Straight, End Sensing 10 - 30 VDC
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:E57-18GS05-GDB
Description
Eaton Inductive Global Proximity Sensor, E57, 5 mm range, Straight, Shielded, Output ON, M12, 100 mA at 10-30 Vdc, 4 pin,
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor |
| Type | Shielded, Straight, End Sensing | Sensing Distance | 5 mm |
| Connection | 4-Pin M12 | Output | NO PNP Open Collector |
| Output Circuit Type | 3-Wire | Dimensions | 18 mm dia x 2.99 in L x 0.71 in W x 0.71 in H |
| Series/Model | E57 | Voltage Rating | 10 - 30 VDC |
| Operating Frequency | 1 kHz | Load Current | 100 mA |
| Degree of Protection | IP67, IP69K | Connection Type | M12 |
| Material | Nickel Plated Brass | Mounting Type | Flush |
| Temperature Rating | -13 to 158 °F | Environmental Conditions | IP67, IP69K |
| Standards | CE Certified, CSA Certified, UL Listed | Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory |
| UPC | 782114665091 |
