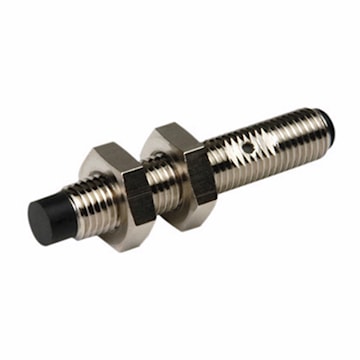

EATON E57-08GE06-GDB Inductive Proximity Sensor Extended, End Sensing, Straight, Unshielded 10 - 30 VDC
cuhe5708ge06gdb
EATON E57-08GE06-GDB Inductive Proximity Sensor Extended, End Sensing, Straight, Unshielded 10 - 30 VDC
Manufacturer:EATON
Manufacturer #:E57-08GE06-GDB
Description
Eaton E57 Small dia Series Inductive Proximity Sensor, 0.315 dia, Straight, Sensor dist: 6 mm, 100 mA max DC, PNP Open Collector, NO, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input,
Specifications
| Brand Name | Eaton | Item Name | Inductive Proximity Sensor |
| Type | Extended, End Sensing, Straight, Unshielded | Sensing Distance | 6 mm |
| Connection | 4-Pin DC Micro M12 Connector | Output | NO PNP Open Collector |
| Output Circuit Type | 3-Wire | Dimensions | 0.31 in dia x 0.31 in L x 0.31 in W x 2.8 in H |
| Series/Model | E57 | Voltage Rating | 10 - 30 VDC |
| Operating Frequency | 2 kHz | Load Current | 100 mA at 30 VDC |
| Degree of Protection | IP67 | NEMA Rating | NEMA 4, 4X, 6, 6P, 12, 13 |
| Connection Type | 4-pin M12 Connector | Material | Nickel Plated Brass |
| Temperature Rating | -32 to 140 °F | Standards | CE Certified, CSA Certified, UL Listed |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory | UPC | 786685125411 |
