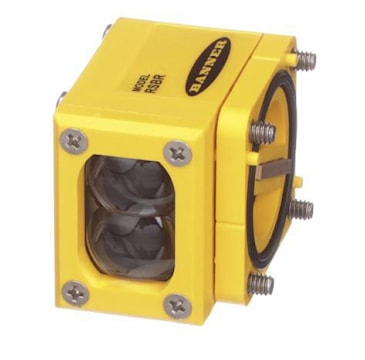

SHELLEY IND RSBR Sensor Head Modular, Rectangular
shersbr
SHELLEY IND RSBR Sensor Head Modular, Rectangular
Manufacturer:SHELLEY IND
Manufacturer #:RSBR
Description
An upper cover consists of the optical element for the maxi-beam sensor head. An upper cover may be used as a replacement part or for modifying the optical response of a sensor. Upper cover assemblies include lens, replacement bezel, O-ring and stainless steel screws.
Specifications
| Brand Name | Banner | Item Name | Sensor Head |
| Type | Modular, Rectangular | Emitter Light Source | Light/Dark |
| Sensing Distance | 90 m | Light Source | 880 nm Infrared, Visible Red |
| Connection Type | Terminal | Response Time | 10 Millisecond at HP/2W Mode, 1 Millisecond ON and 0.5 Millisecond OFF in HS Mode, 0.3 Millisecond in SP Mode |
| Material | Valox Housing, Acrylic Lens | Series/Model | Maxi-Beam |
| Sensing Mode | Transmitted Beam Receiver | Indicator Type | Red LED |
| Enclosure Type | NEMA 1, 3, 4, 12, 13 | Mounting | Bolt |
| Temperature Rating | -40 to 70 °C | Dimensions | 1.9 in L x 1.6 in W x 4-1/2 in H |
| Standards | cULus Listed, CSA Certified, CE Certified | UPC | 662488256043 |
Packages
| 1 - rarr_unit_1 |
