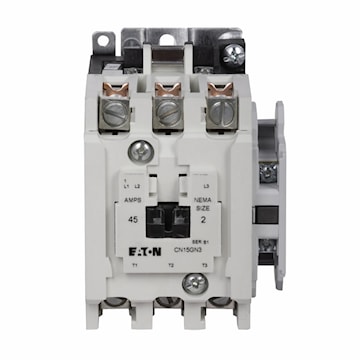

EATON CN15GN3AB FREEDOM CONTACTOR
cuhcn15gn3ab
EATON CN15GN3AB FREEDOM CONTACTOR
Manufacturer:EATON
Manufacturer #:CN15GN3AB
Description
Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 120V/60 Hz, 45A, Four-pole, Size 2
Specifications
| Brand Name | Eaton | Item Name | Motor Control NEMA Contactor |
| Type | Non-Reversing | Phase | 1/3 |
| Number of Poles | 3 | Dimensions | 4.44 x 2.56 x 5.05 in |
| Voltage Rating | 120 V | Amperage Rating | 45 A |
| Frequency Rating | 60 Hz | HP Rating | 3 hp at 115 V, 7-1/2 hp at 230 V, 10 hp at 208 V, 15 hp at 240 V, 25 hp at 480/600 V |
| NEMA Rating | NEMA 2 | Standards | UL Listed, CSA Certified |
| Application | Commercial, Institutional Buildings, Structures | UPC | 782113973555 |
